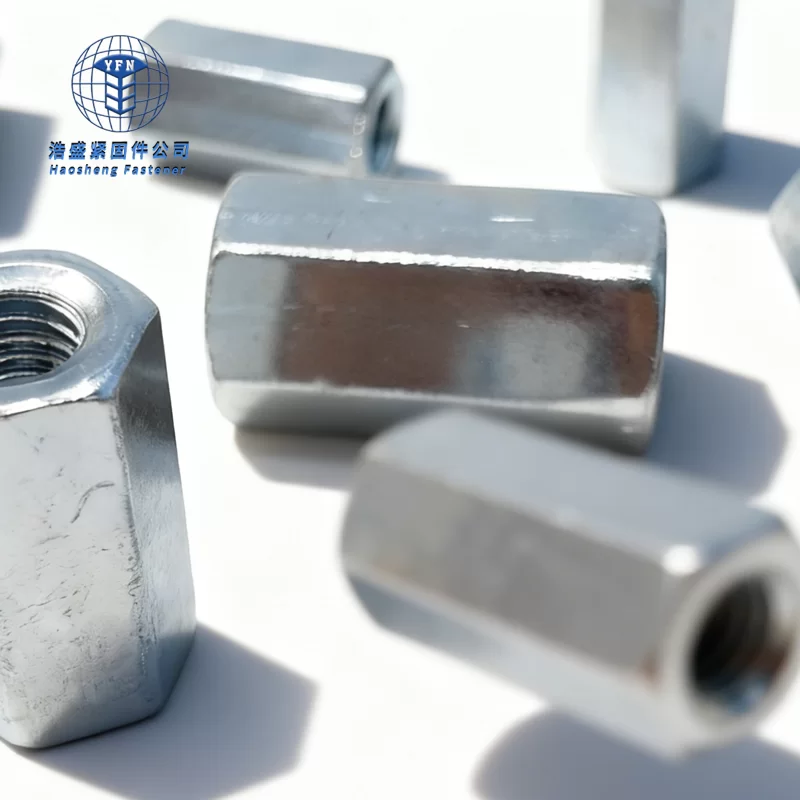

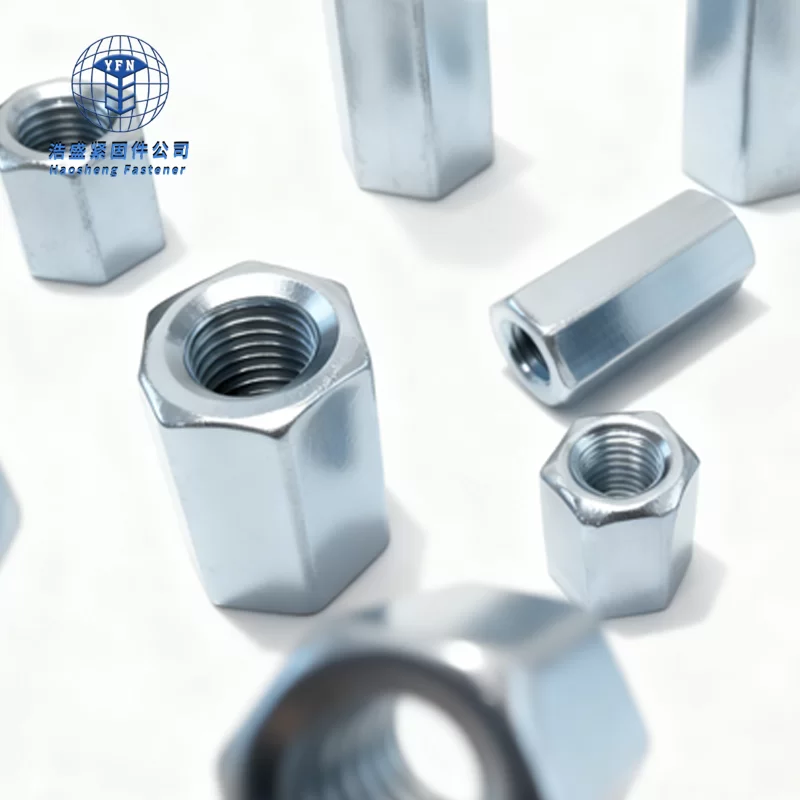

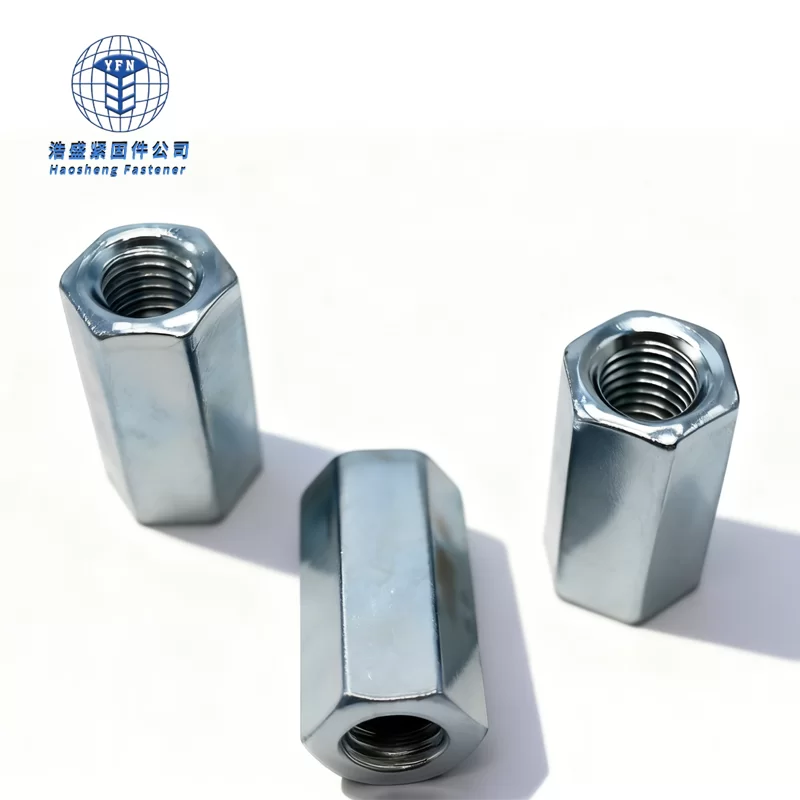

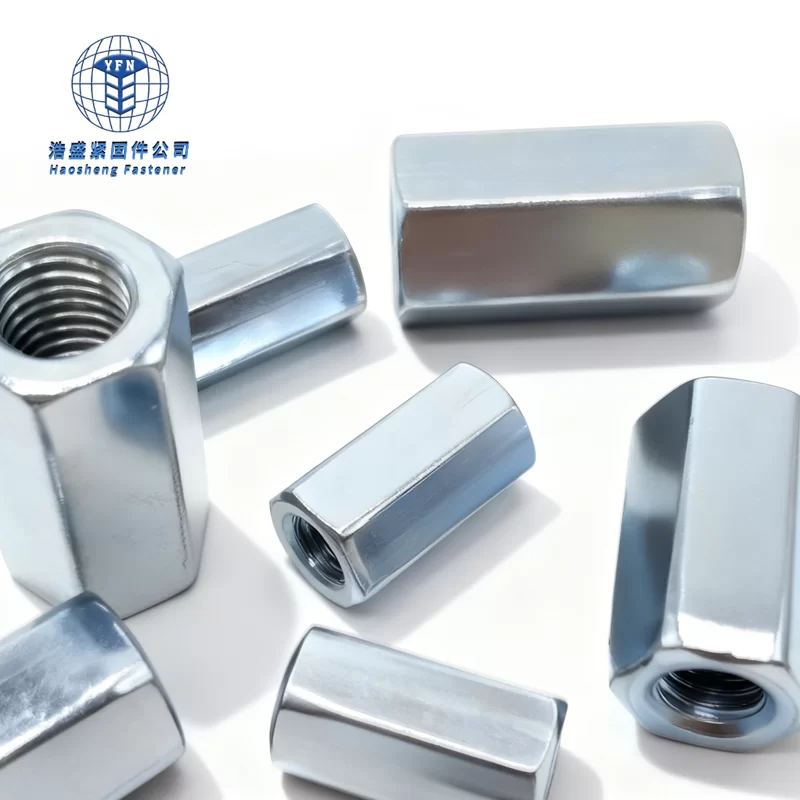

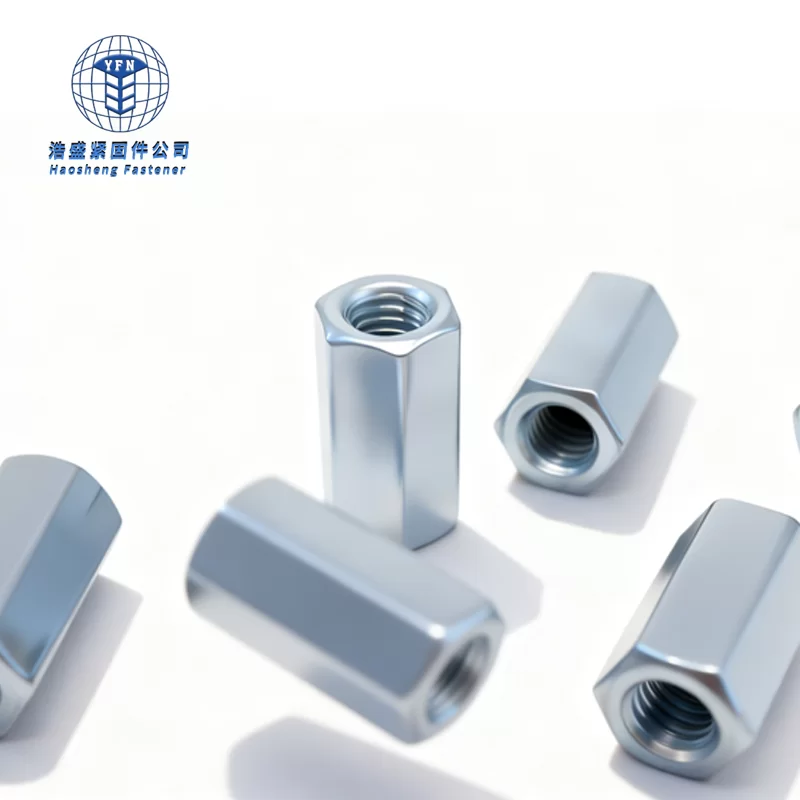

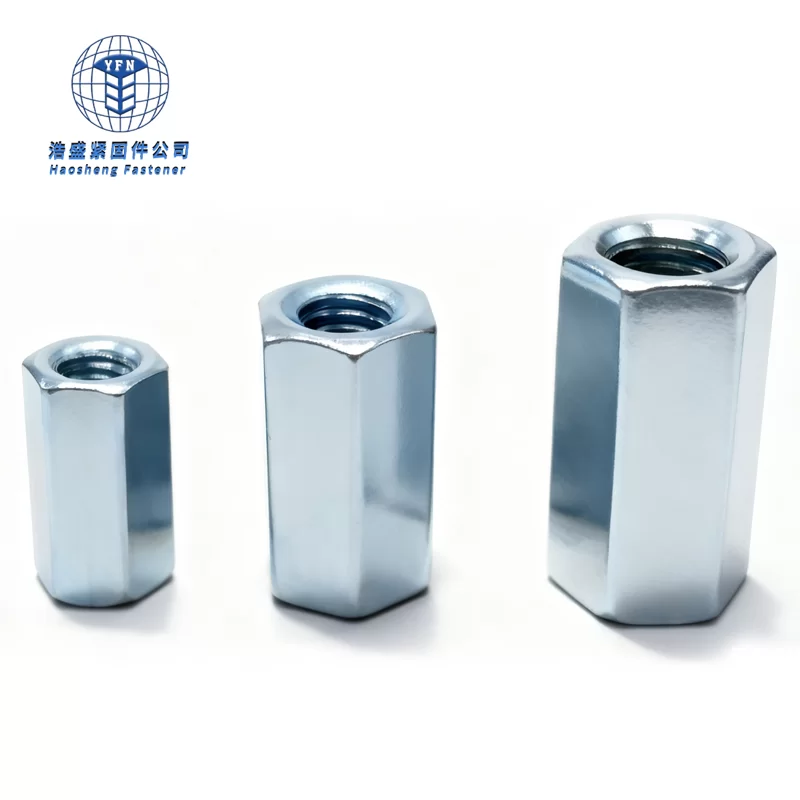

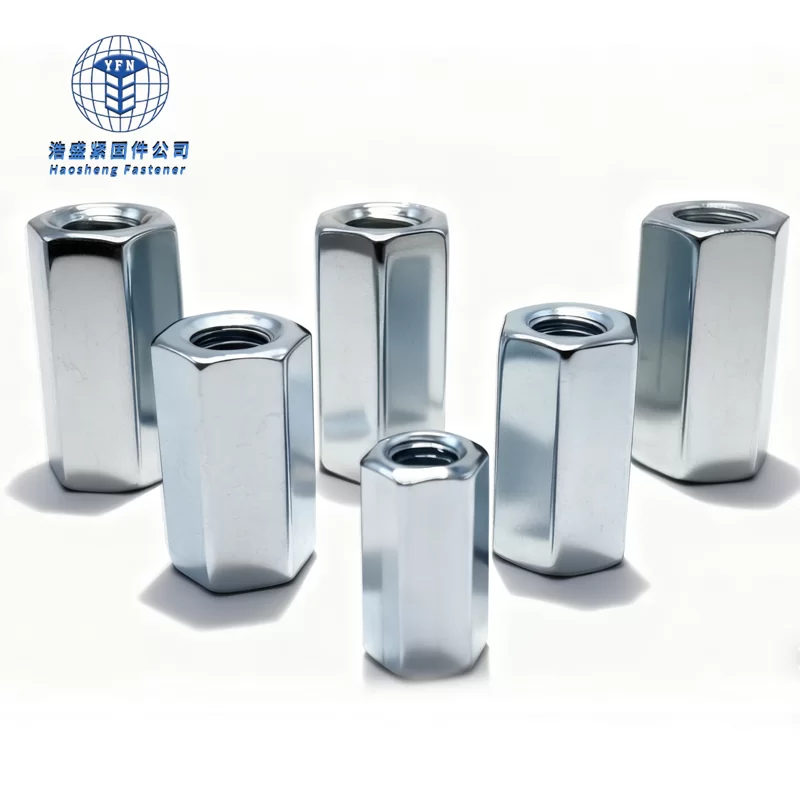

DIN 6334 Hex Coupling Nuts

Our DIN 6334 Hex Coupling Nuts are precision-engineered, high-strength fasteners designed to securely join two externally threaded rods or bolts end-to-end. Characterized by their extended length and full, uninterrupted internal threading, these coupling nuts provide a robust and reliable connection point for a wide range of mechanical assembly, construction, and repair applications. Manufactured in strict compliance with DIN 6334 standards, they guarantee consistent dimensions, thread accuracy, and mechanical performance for dependable results in professional and industrial settings.

Description

Product Details

Name	Thick Hex Nuts	Materials	Carbon Steel/Stainless Steel
Standards	DIN6334	Strength level	4 8 10 12 A2-70 A4-70 A4-80
Size	M6-M36	Surface finish	ZP\HDG\BLACK\Dacromet etc.
Length	/	Samples	Available

Product Parameters

Screw Thread		M6	M8	M10	M12	M14	M16	M18	M20	M22	M24	M27	M30	M33	M36
d		M6	M8	M10	M12	M14	M16	M18	M20	M22	M24	M27	M30	M33	M36
P	Pitch	1	1.25	1.5	1.75	2	2	2.5	2.5	2.5	3	3	3.5	3.5	4
s		10	13	17	19	22	24	27	30	32	36	41	46	50	55
L		18	24	30	36	42	48	54	60	66	72	81	90	99	108
e		11.05	14.38	18.9	21.1	24.49	26.75	29.56	33.53	35.03	39.98	45.2	50.85	55.37	60.79
per 1000 units ≈ kg		7	18	42	63	95.5	122	140	240	300	412	608	825	1100	1470

Key Features & Benefits

Extended Grip Length: The elongated hexagonal body provides a deep, secure engagement with both mating threads, distributing load over a greater area and significantly increasing connection strength and stability compared to standard nuts or short couplings.

Full Internal Threading: Precision-cut threads run the entire length of the nut, allowing for maximum flexibility in joining threaded rods of various lengths and ensuring a uniform, strong connection.

High-Strength Material: Manufactured from graded steel (typically Grade 8 or equivalent), our coupling nuts offer excellent tensile strength and durability, making them suitable for structural and load-bearing applications.

Versatile Joining Function: The primary solution for linearly extending threaded rods, creating adjustable tie rods, repairing broken studs, or providing a solid threaded junction in frameworks, piping, and machinery.

Easy Installation & Adjustment: The standard hex design allows for easy installation and tightening using common wrenches or sockets. The extended length also facilitates fine adjustments in the overall assembly length.

Corrosion Protection Options: Available with various finishes including Zinc Plated, Hot-Dipped Galvanized, and Geomet® coating to provide resistance against rust and corrosion in different environmental conditions.

Intended Applications

DIN 6334 Coupling Nuts are indispensable in scenarios requiring a strong, elongated threaded connection:

Construction & Steelwork: Extending threaded bar in concrete formwork, post-tensioning systems, and structural tie assemblies.

Machinery & Equipment: Joining lead screws, actuator rods, and creating adjustable linkages in mechanical systems.

Piping & HVAC: Assembling long threaded rods for pipe hangers, seismic bracing, and duct support systems.

Automotive & Repair: Repairing damaged or stripped studs on engines and equipment; creating custom-length fasteners.

General Fabrication: Any project requiring a reliable, high-strength connection between two threaded ends.

Installation Guidelines

1.Ensure Compatibility: Verify that the thread pitch (M) and diameter of both rods/bolts match the coupling nut.

2.Prepare Threads: Clean the threads on both rods to be joined of any dirt, debris, or damage.

3.Screw In: Thread the first rod into one end of the coupling nut until it is firmly engaged. Then, screw the second rod into the opposite end.

4.Tighten: Using two wrenches (one to hold the nut, one to turn the second rod if needed), tighten the assembly until the connection is secure and the desired overall length is achieved. For critical applications, consult torque specifications.

Why Choose Our DIN 6334 Coupling Nuts?

Certified Quality: Our nuts are produced to meet strict international quality standards, with material certifications and traceability available upon request.

Engineering Support: Our technical team can assist with load calculations, material selection, and application-specific recommendations.

Competitive Pricing & Inventory: We offer direct manufacturer pricing and maintain a substantial stock for reliable, timely delivery on both standard and project-based orders.

Customization Options: We can provide custom sizes, special coatings, and unique packaging to meet your exact project specifications.
